Clearview Vision Inset
multi fuel / wood burning stove

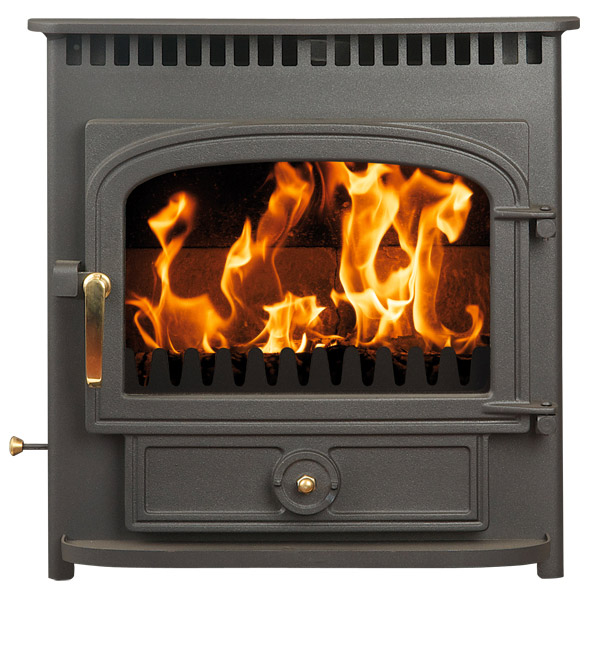

  • Clearview Vision Inset without trim
  • Clearview Vision Inset without trim
  • Clearview 750 Flat Top on 177mm plinth
  • Clearview Vision Inset with fettle
Clearview Vision Inset multi fuel / wood burning stove
Get Best Price

Share this

View Brochure

View a .pdf version of the Charnwood wood stoves brochure.

View Brochure

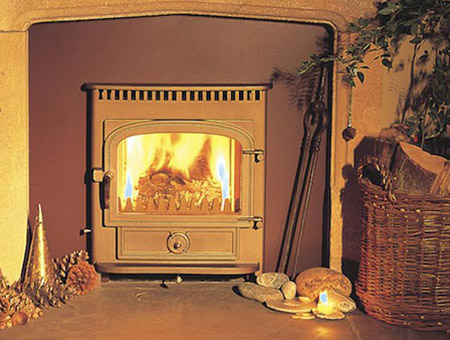

Clearview Vision Inset multi fuel / wood burning stove


The Clearview Vision Inset multi fuel / wood burning stove shres the tested Clearview features of its free standing sibling the Clearview Vision 500; wonderful fire view, clean burning and crystal clear glass.

The Clearview Vision Inset can be installed in a standard fireplace opening where the hearth depth is limited and the least structural disruption is required. If the fireplace is to be constructed, use our fire convection box to line the opening. This will aid installation and ensure the correct air flow around the stove.

Key Features
  1. Large Clearview double glazed door.
  2. Hot ‘air wash system’ for really clean burning without fuss or pampering.
  3. Bottom air inlet makes full use of external air inlets whilst maximising pre-heating and reducing base temperature.
  4. Independent up draught and down draught air distribution system for maximum response and control.
  5. Refractory lining, promoting clean combustion.
  6. Multi-fuel, both wood and coal burn equally well.
  7. Rotary grate for easy riddling.
  8. Solid construction - the combustion chamber is entirely constructed of 5mm steel continuously welded inside and out for added strength. The convection chamber is made of 3mm steel that has also been continuously welded.
  9. Stainless steel ash pan for easy ash removal.
  10. Adjustable hinges and door catch to maintain air tightness throughout the life of the door seals.
  11. Solid brass removable door handle.
  12. Adjustable levelling bolts, for secure delivery are stable installation.
  13. Maximum gross heat output: 1.5 to 5kw

  1. Available in a range of seven colours to compliment your decor.
  2. Satin chrome door handles and fittings.
  3. Convection box casing to improve heat output.

Boiler Options
  1. 8,000 Btu stainless steel boiler

Clearview Vision 500 links
  1. Clearview Stoves website
  2. Video: Tales from a Cleaarview fireside


Wood burning / multi fuel






Height - 569mm
Width - 530mm
Depth - 442mm






120Kg (without boiler)


250mm (10 inch) approx

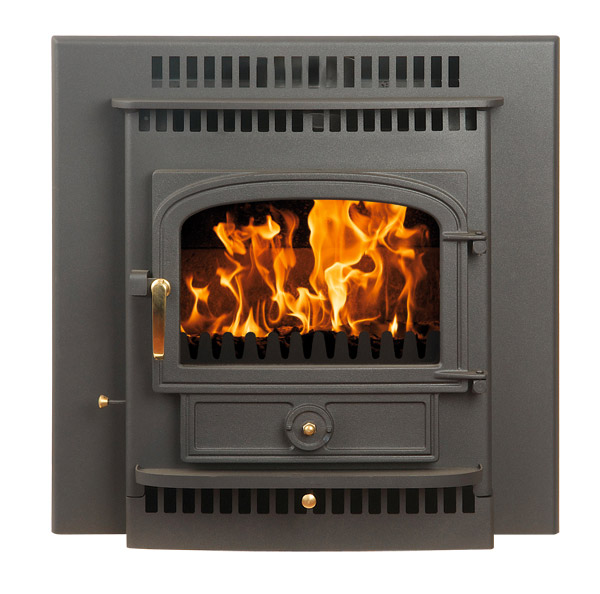

Clearview Vision Inset with convection box
Clearview Vision Inset with convection box
Clearview Vision Inset with fettle and trim
Clearview Vision Inset with fettle and trim

Clearview Vision Inset

Multi fuel / wood burning stove
